前言

众所周知，prometheus结合alertmanager可将告警信息通过邮件、短信、微信、webhook或者其他方式通知到运维人员，大部分监控系统也都是采用这种告警通知方式。

这里介绍另外一种告警通知方式——告警大屏，对于有24*7值班人员的企业，这种方式反而更实用。

在办公室显眼的地方放一个显示器，显示告警大屏。值班人员实时关注告警大屏，发生故障时再第一时间通知到运维人员处理。

部署

假设已经部署好prometheus、alertmanager以及grafana环境。

Prometheus的告警规则

Prometheus的告警规则里，需要定义告警级别标签。

如下系统负载超标定义为普通警告（severity: warning），根分区使用率大于90%为严重警告（severity: critical）

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
- name: system_load.rules
  rules:
  - alert: 系统负载超标
    expr: node_load1/count without (cpu, mode) (node_cpu_seconds_total{mode="system"})>1.1
    for: 2m
    labels:
      severity: warning
    annotations:
      summary: 系统负载超标
      description: '{{$labels.instance}} 当前负载超标率 {{printf "%.2f" $value}}'

- name: partion_used.rules
  rules:
  - alert: 分区使用率大于90%
    expr: ceil(100 - ((node_filesystem_avail_bytes{fstype != "rootfs"} * 100) / node_filesystem_size_bytes{fstype != "rootfs"}))>90
    for: 1m
    labels:
      severity: critical
    annotations:
      summary: "{{$labels.mountpoint}} 分区空间紧张"
      description: "{{$labels.instance}} {{$labels.mountpoint}}分区空间使用率 {{$value}}%"

grafana安装prometheus-alertmanager-datasource插件

1
grafana-cli plugins install camptocamp-prometheus-alertmanager-datasource

添加Prometheus AlertManager数据源

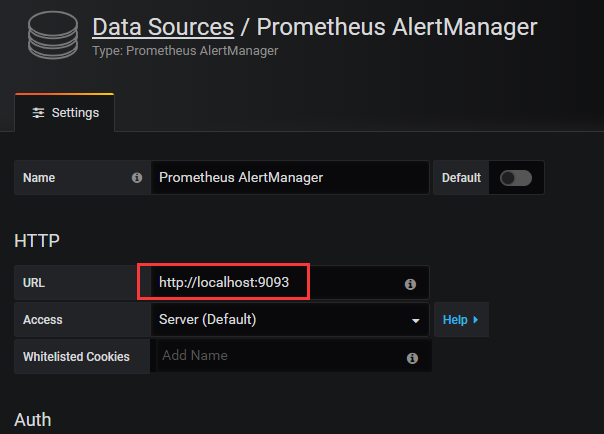

登录grafana，Configuration->Data sources->Add data srouces，选择Prometheus AlertManager，输入alermanager的地址

1576562623402

1576567699221

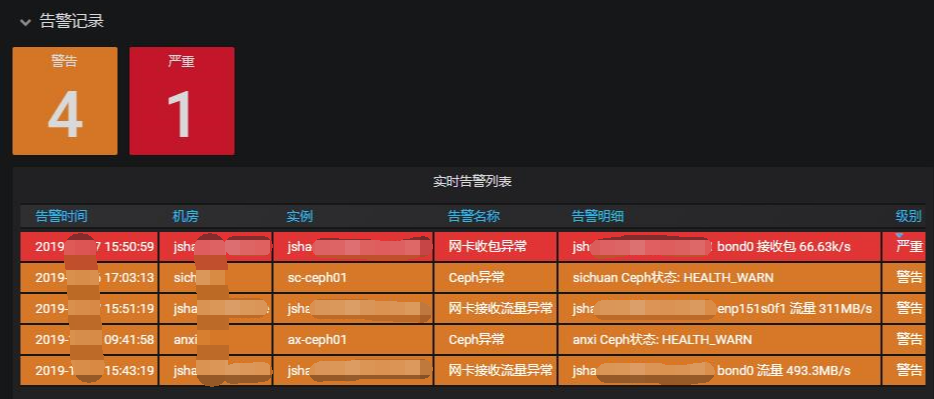

创建告警大屏

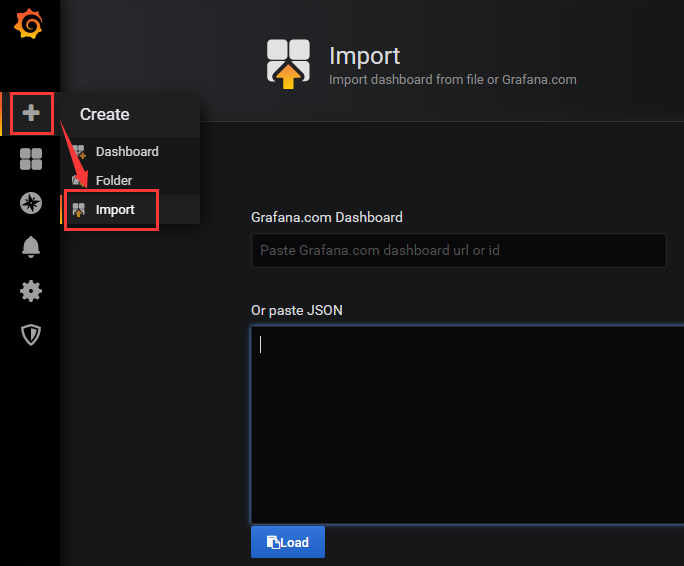

这里我已经配置好，直接导入如下json即可。当然也可以根据自己的需求自定义。
